SNES Mask ROM Adapter Board (29F0xx)

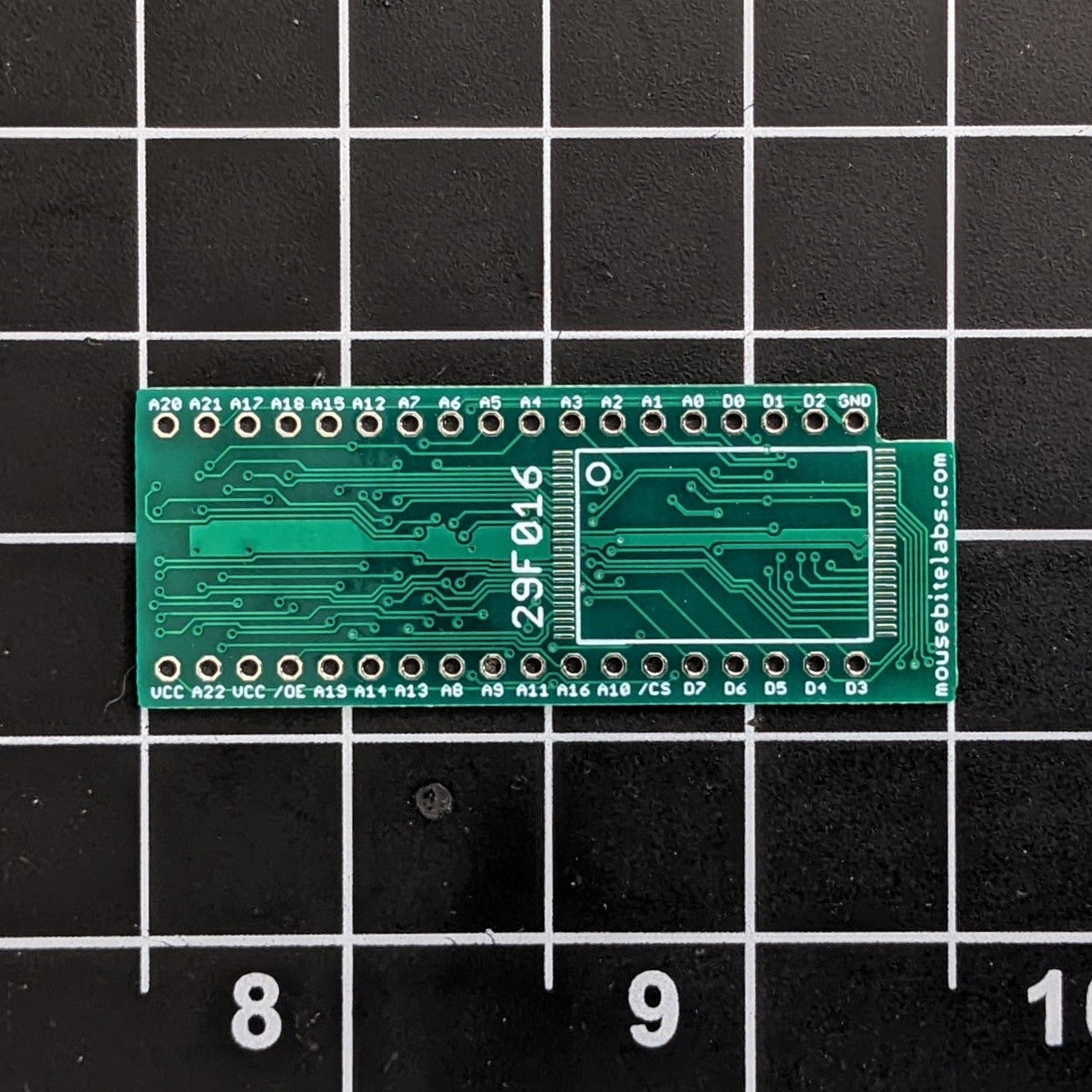

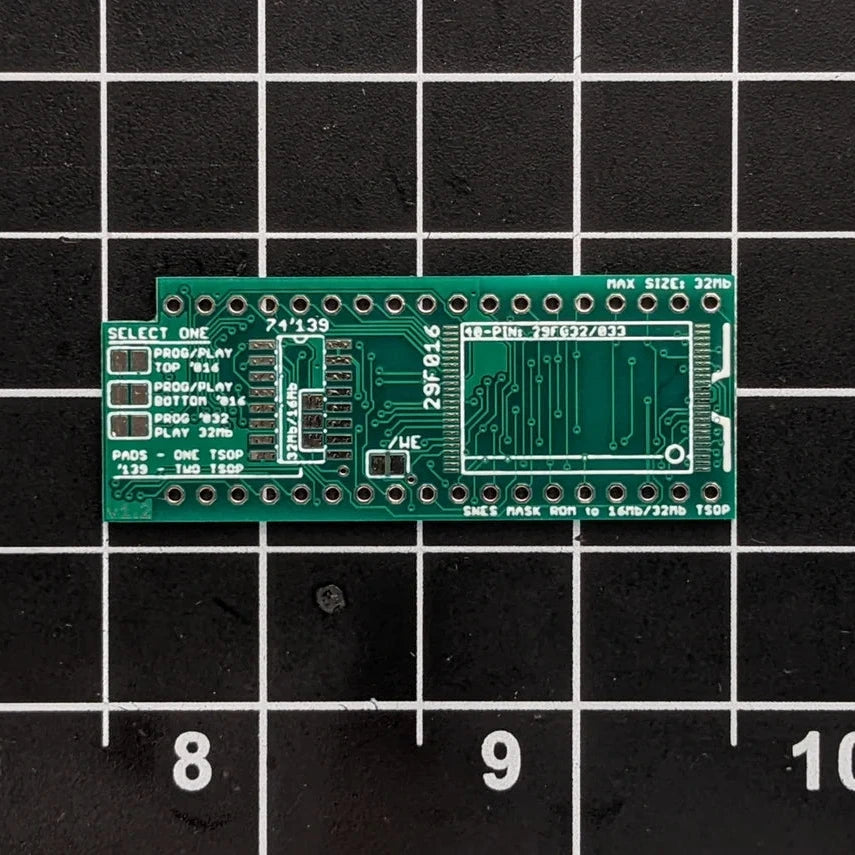

This is the listing for an unpopulated adapter board that allows you to use TSOP packaged EEPROMs to refurbish your old SNES games, or put your own homebrew games on original hardware. The board uses two 29F016 EEPROMs, or one 29F032 or 29F033 EEPROM, to hold games that are up to 32 Mbit (4 MB) large, and it fits in the original 36-pin SNES Mask ROM socket (or on my own Basic SNES boards) without any modification to the cartridge shell.

Full information on the build, including a full list of parts required to build it, can be found at my github here, which you ABSOLUTELY MUST read through before taking on this project: https://github.com/MouseBiteLabs/ROM-Adapter-Boards/tree/main/SNES%20to%20TSOP

What you will receive is one single bare circuit board. You must populate this board yourself. (Do not ask me to do it for you.)

This project is open source, so if you would like to order your own from the PCB manufacturer of your choice, the files are available in the GitHub repository. Just be sure to match the exact specifications as listed (thickness, surface finish, etc).
