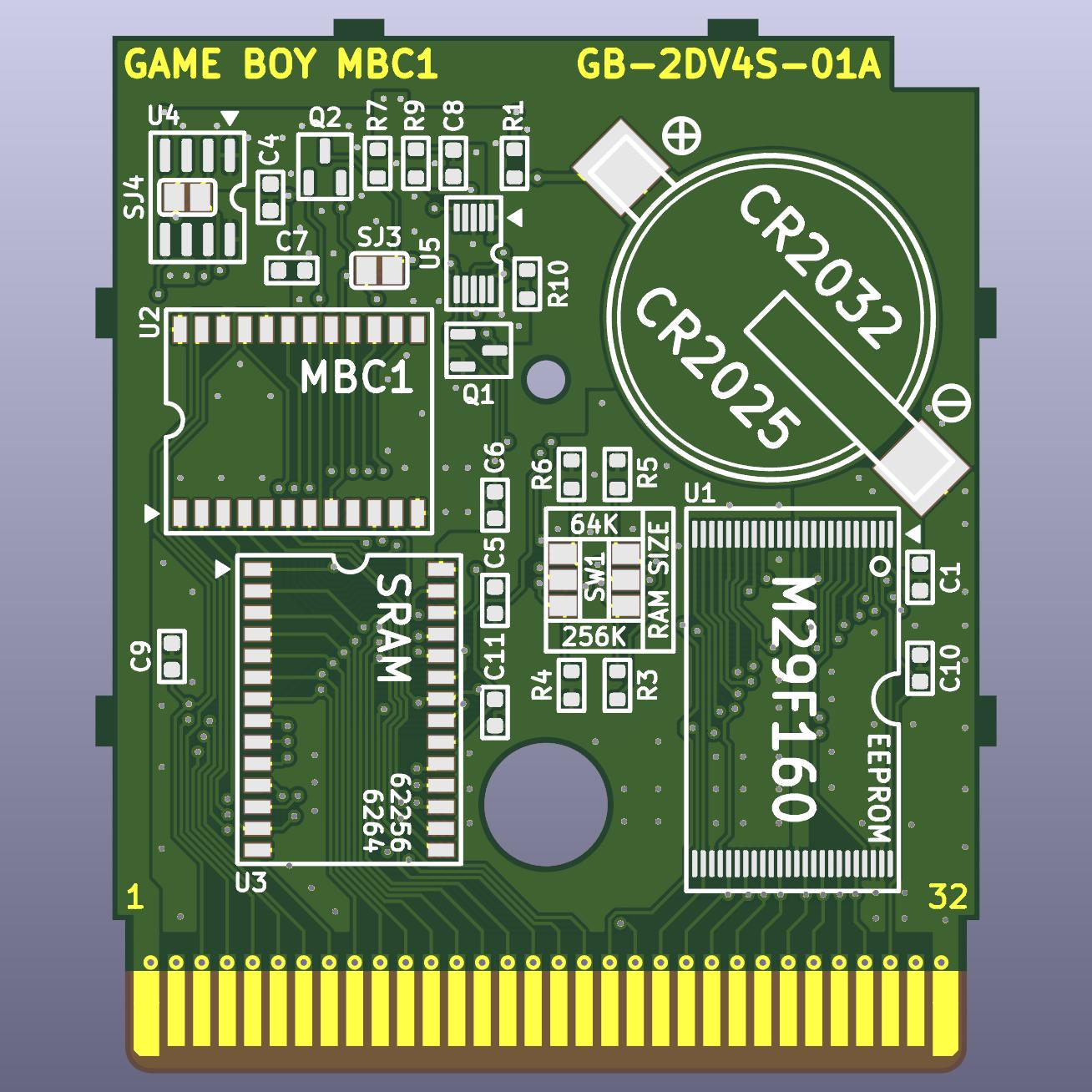

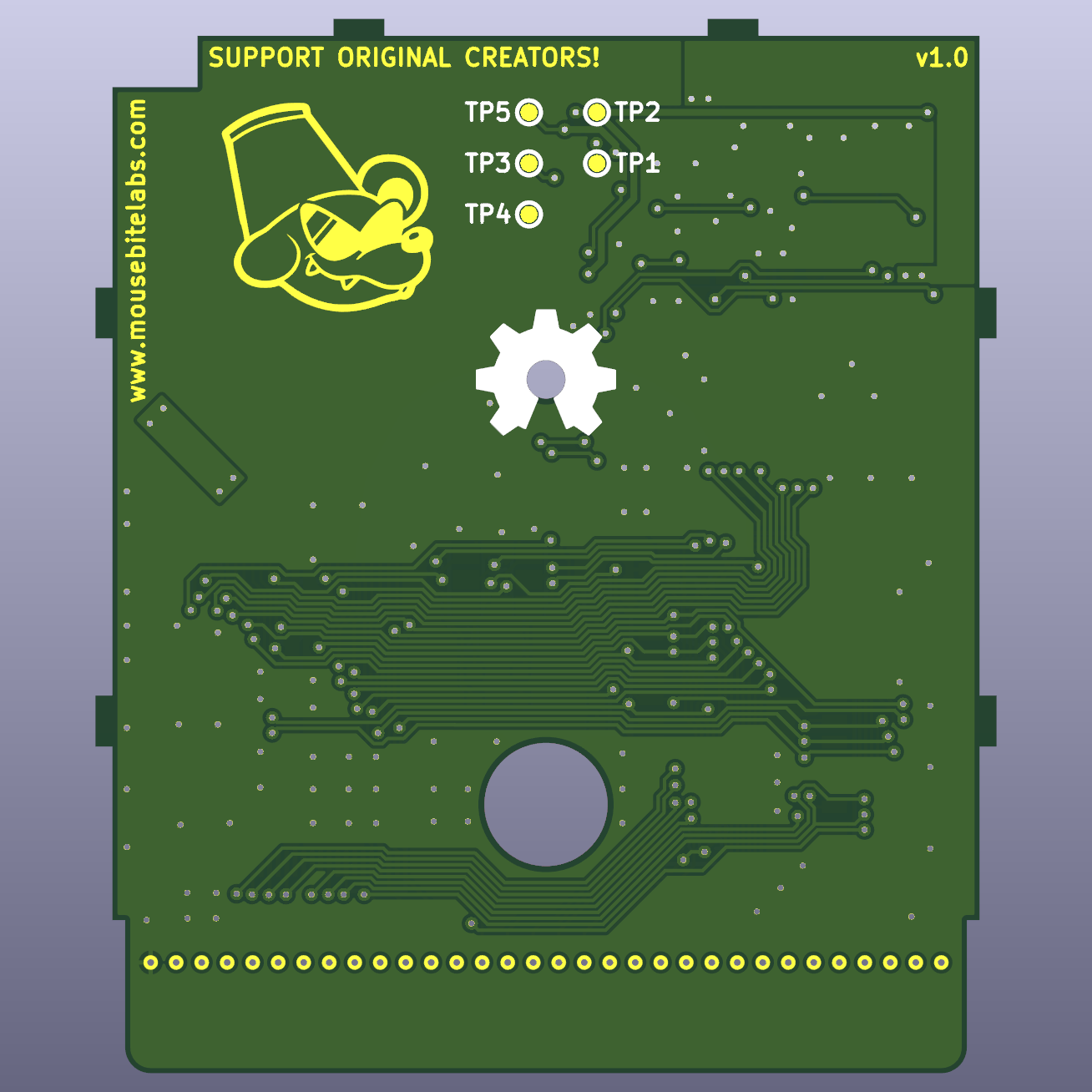

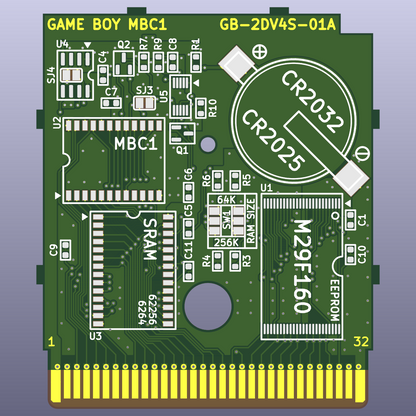

Game Boy MBC1 Flash Cartridge Circuit Board

NOTE: A slight error on the v1.0 boards currently for sale means the maximum amount of ROM space that can be programmed via a cart flasher is 512KB. Please read the GitHub for more information.

This board is intended for making either homebrew games, or to backup games you already own. This board IS NOT a 1-to-1 replacement for original boards.

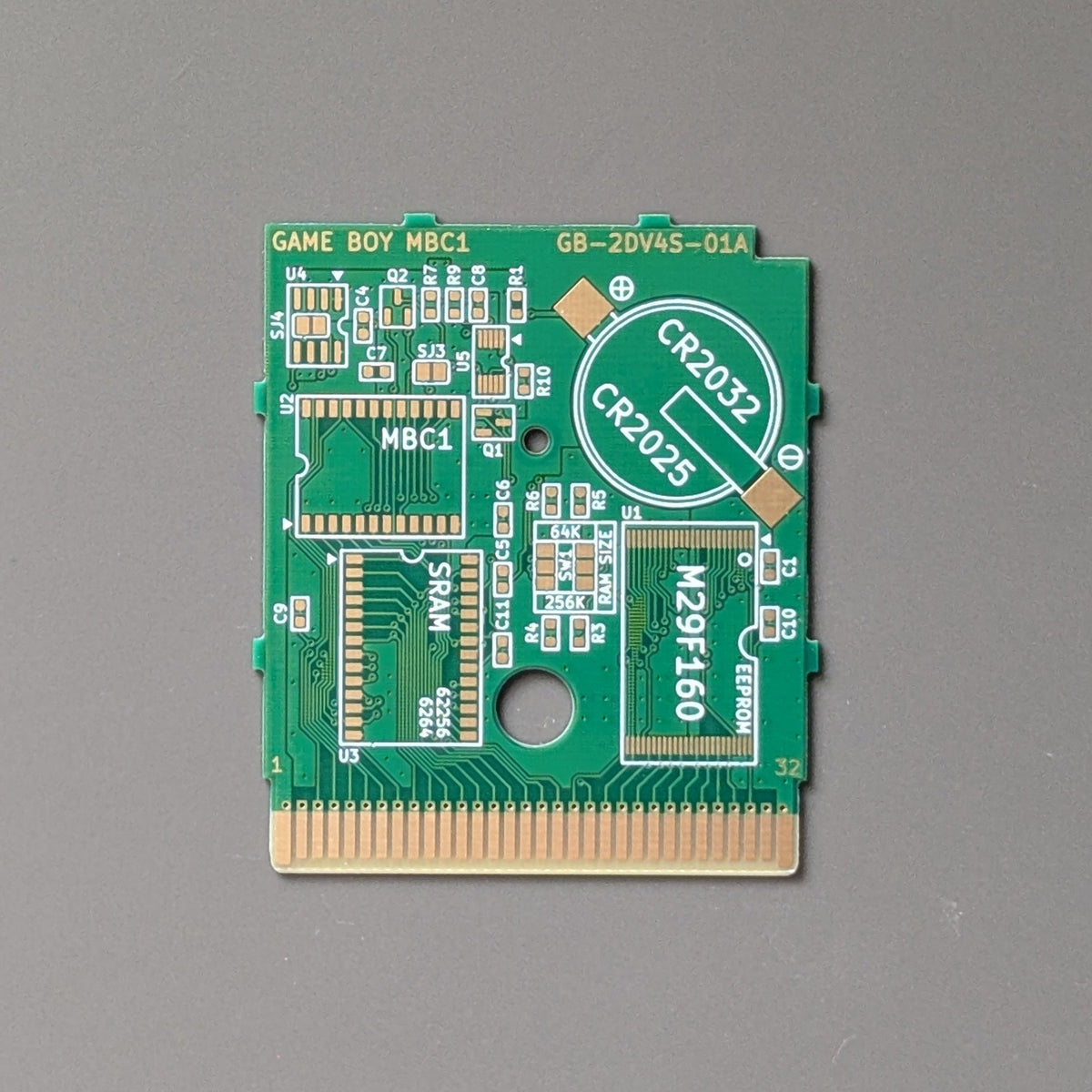

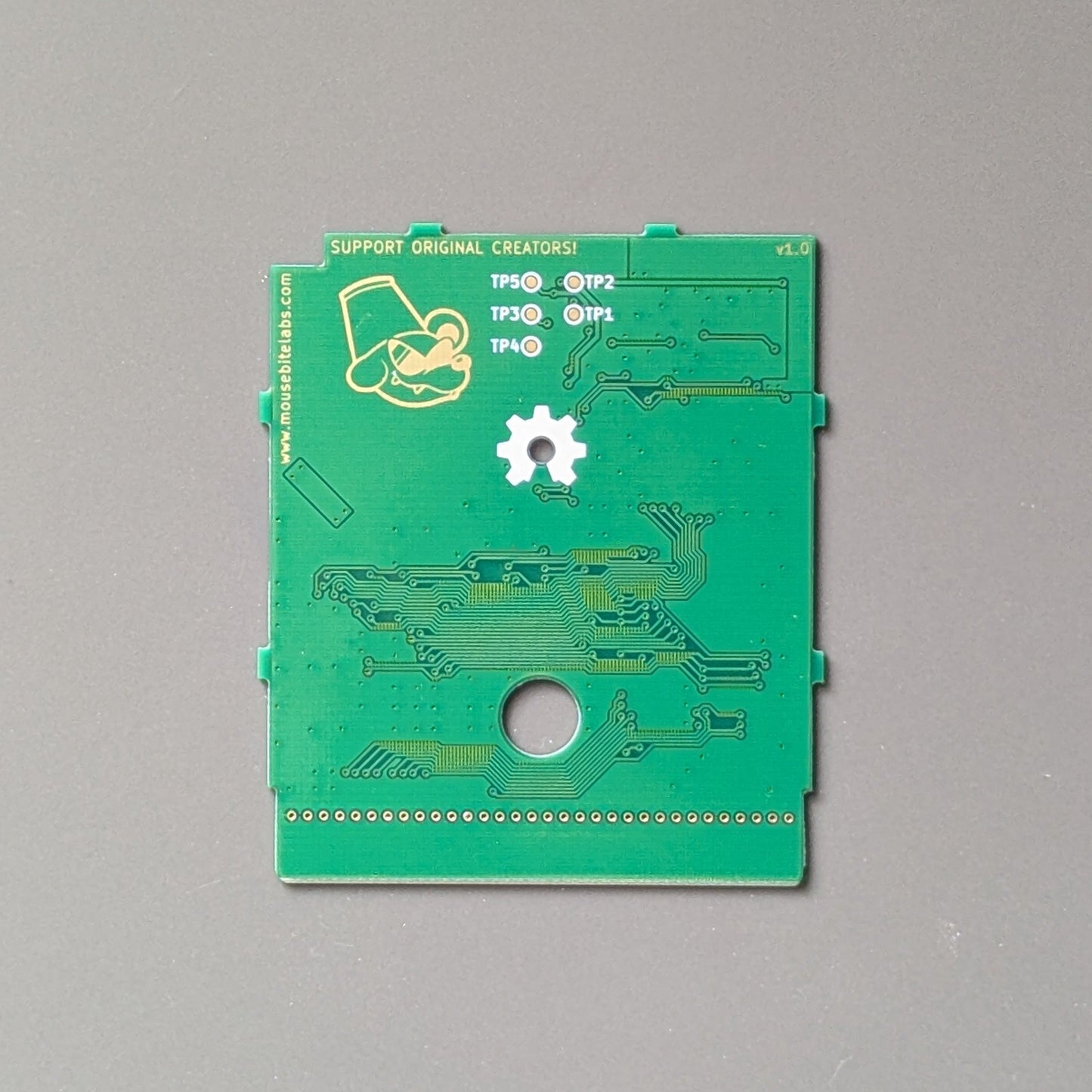

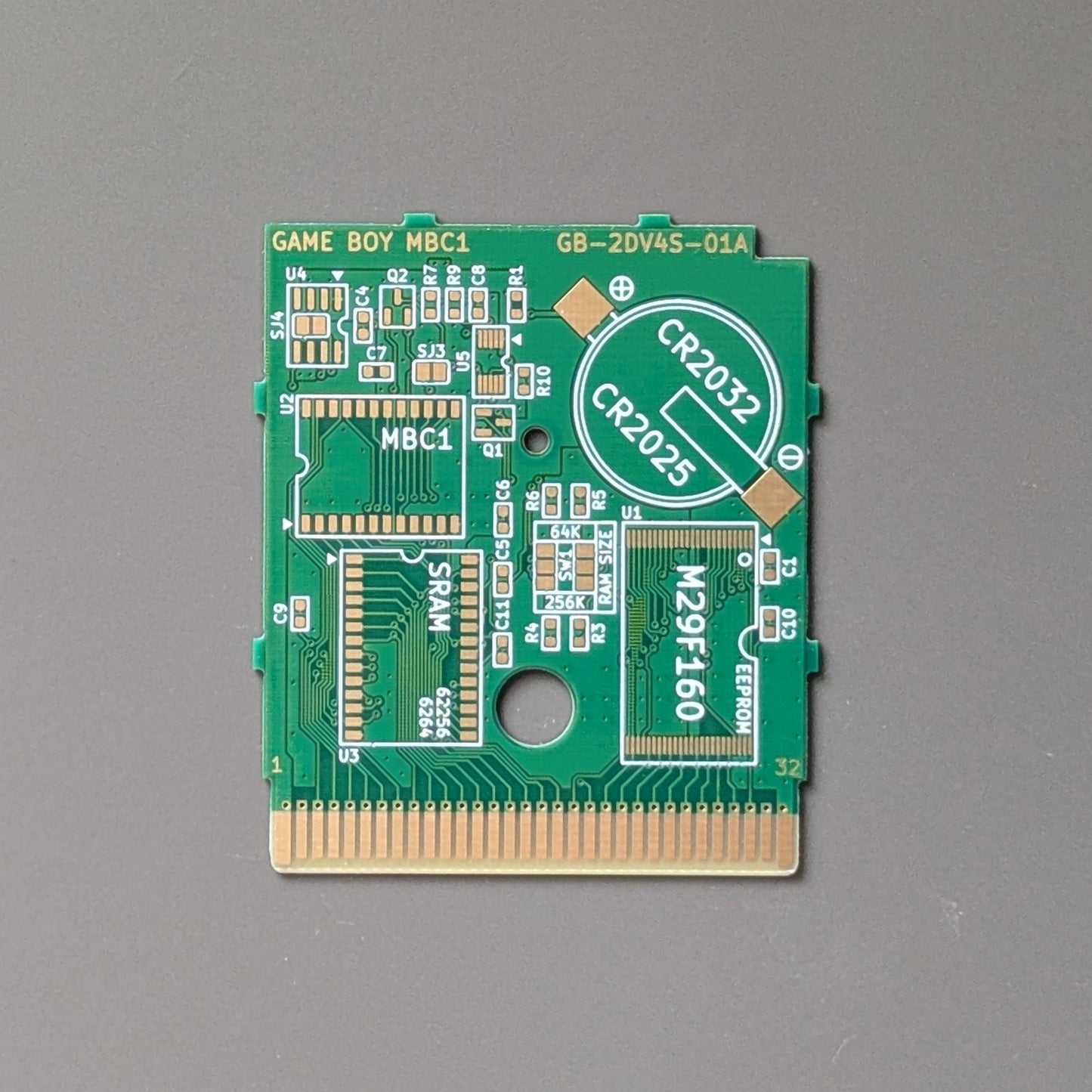

This is an unpopulated circuit board you can use to make your own homebrew Game Boy games. You will need to purchase components and solder them to the board yourself. You will also need an MBC1 mapper chip from an original Game Boy game that uses the MBC1 mapper. This board uses brand new M29F160 EEPROMs and battery-backed SRAM.

Before you purchase, please read through the GitHub repository, and keep these things in mind:
1) This project requires good soldering experience. You must be proficient in drag soldering, and be able to use hot air or a hot plate.
2) You will need a donor cartridge for the MBC1 mapper chip.
3) You will need a method to flash games onto the EEPROM, like the GBxCart.
4) Full game compatibility is not guaranteed, but I haven't run into any issues. Any incompatibilities will be recorded on the GitHub.

A video tutorial for making one of my Game Boy cartridges can be found on my YouTube channel: https://www.youtube.com/watch?v=7UwJT3o4NFQ

Unsure what kind of mapper your intended Game Boy game uses? Check out this website for a list: https://catskull.net/gb-rom-database/

You can find example builds at the wiki page of the GitHub: https://github.com/MouseBiteLabs/Game-Boy-Cartridges/wiki/MBC1

This project is open source, so if you would like to order your own from the PCB manufacturer of your choice, the files are available in the GitHub repository. Just be sure to match the exact specifications as listed (thickness, surface finish, etc).
